more TRAnsients and Pulsars

What is MeerTRAP?

MeerTRAP is a project to continuously use the MeerKAT radio telescope to search the radio sky for pulsars and fast radio transients and to rapidly and accurately locate them. Utilising the excellent sensitivity and sky coverage of MeerTRAP the team will discover many rare and scientifically important pulsar types: relativistic binaries, intermittent emitters, and transitioning systems. Current radio telescopes have only explored the tip of the transients "iceberg" and MeerTRAP will transform our knowledge of these manifestations of extreme physics. It will detect hundreds of new bursts, which will all be well localised, allowing us to identify hosts and distances, greatly enhancing their use as cosmological probes. Localisation also enables measurement of their true fluxes, polarisation, and spectral indices; all of which are crucial to identify their origin. To achieve this we are designing, implementing, and exploiting state-of-the-art hardware and software. We will also use the MeerLICHT optical telescope, which will track MeerKAT, to give us a crucial glimpse of the optical sky immediately before and after any radio transient to further constrain their origin and the associated physics.

Real time transient detection

The MeerTRAP pipeline will detect fast radio transients, such as fast radio bursts, RRATs, and pulsars, in real-time.

Transient localisation

Once a transient has been detected it can be rapidly localised using imaging. This enables rapid follow-up with MeerLICHT and other telescopes.

MeerLICHT partnership

MeerTRAP is partnered with the MeerLICHT optical telescope, a fully robotic telescope that co-points with MeerKAT. This is essential for identifying optical counterparts of fast radio transients, particularly fast radio bursts.


A New Era of Radio Transients

Laura Driessen reviews the history of radio transient astronomy, details current investigations of a wide range of radio transients with Square Kilometre Array pathfinder and precursor instruments, and discusses what the SKA will reveal about the changing radio sky.

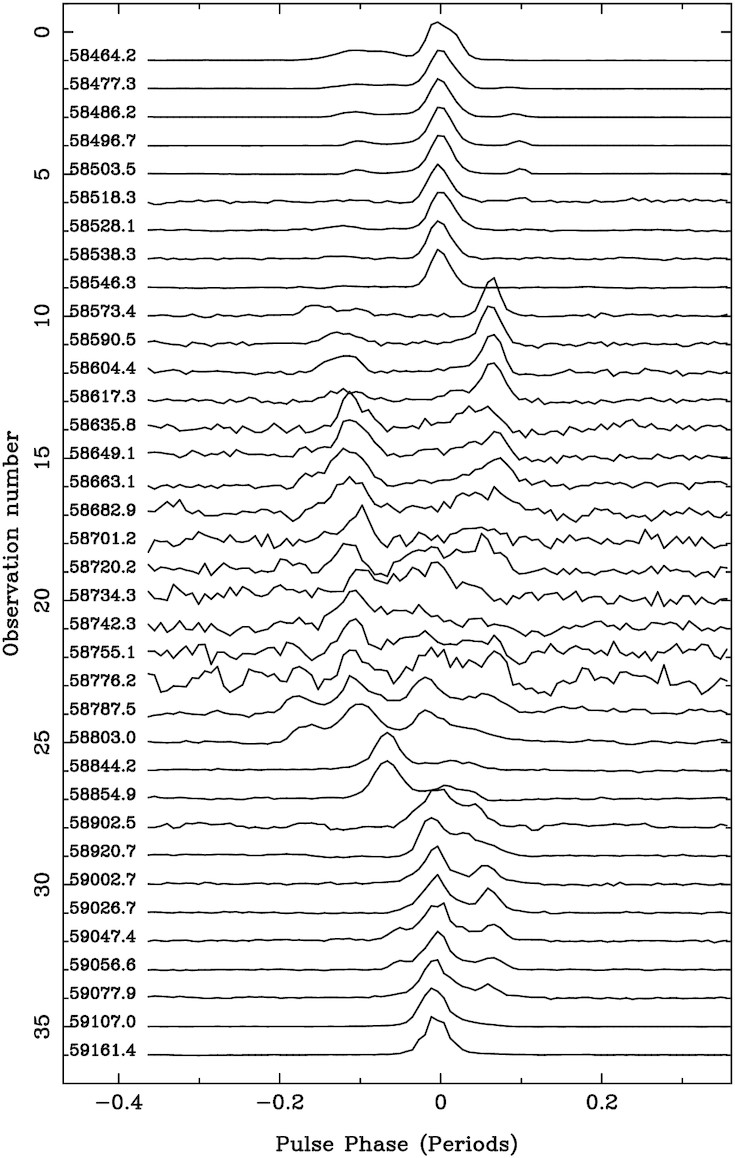

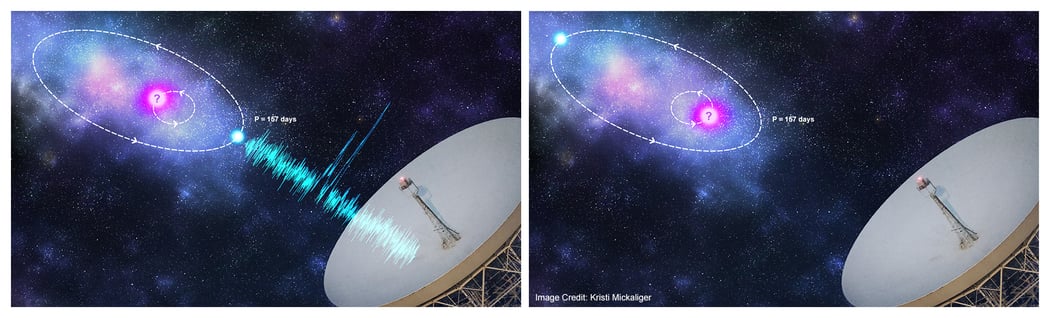

It’s about a 157 day pattern in the activity of the first repeating fast radio burst, FRB 121102! Here’s a thread about this cool result: The team who worked on this kept an eye on FRB 121102 for 4 years using the @JodrellBank 76-m Lovell Telescope. Over the 4 years, we detected 32 bursts from FRB 121102. We used these bursts, plus bursts detected by other telescopes in the past, to find out that FRB 121102 emits bursts in a 90-day window, then goes silent for the next 67 days, and then this pattern repeats. Before now, only one other repeating FRB, called FRB 180916.J0158+65, demonstrated such regular behaviour. But the pattern of FRB 180916 repeats every 16 days, instead of every 157 days like FRB 121102. This huge difference between the two repeating FRBs means that there’s a wide range of periodicity in repeating FRB behaviour. This helps us narrow in on theoretical models to explain repeating FRBs. An example of a theory to explain these sources is a compact object (the object making the FRB bursts) orbiting a second object. Another theory is that the bursts come from the magnetic pole of a neutron star, but that the neutron star wobbles (precesses) as it rotates. This new information about periodic bursting tells us about how strong that magnetic field around the star has to be. We still need to find lots more of these objects (lots of us are working on it! Including the MeerTRAP team!) to narrow down the theory and work out exactly what causes these cool, mysterious radio bursts!



You can read all about it here:


Limits on Absorption from a 332-MHz survey for Fast Radio Bursts


Fast Radio Bursts (FRBs) are are bright, astrophysical radio flashes that are known to be extragalactic in origin. Though a lot of them have been discovered over a broad range of radio frequencies (a few GHz right down to 600 MHz), none so far have been discovered at the lower end of the radio band (100 — 400 MHz). The reason for dearth of FRBs at low frequencies is generally attributed to absorption and scattering of radio waves as they propagate through the intergalactic and the interstellar medium. To investigate this further, we performed a drift scan survey for FRBs at 332-MHz using the 76-m Lovell Telescope at Jodrell Bank. The search spanned over 58 days with the telescope pointed to the zenith as it was under maintenance.  We surveyed approximately 0.61 square degrees of the sky. We did not detect any FRBs though we often detected single pulses from a known pulsar, PSR B0329+54 that transited through the primary beam of the receiver. The non-detections help us in placing constraints over various absorption models that were considered by previous authors on this topic. We show that free-free absorption is the most likely channel of absorption of radio waves and the most suitable conditions for them can occur in dense, ionised shells for Super-Luminous Super Nova Remnants that have been postulated as potential progenitors of these mysterious bursts. The results of this study have been accepted for publication in the Monthly Notices of the Royal Astronomical Society. The paper is also now out on the ArXiv (

MKT J170456.2-482100: the first new transient discovered with MeerKAT

2019.11.20 - A joint ThunderKAT and MeerTRAP team finds a radio flare from a binary system in our Galaxy

MeerTRAP PhD student Laura Driessen led work on the discovery and analysis of the first new transient to be discovered with the MeerKAT telescope! you can find out more here, and you can read the paper in the Monthly Notices of the Royal Astronomical Society, or open-access on ArXiv.

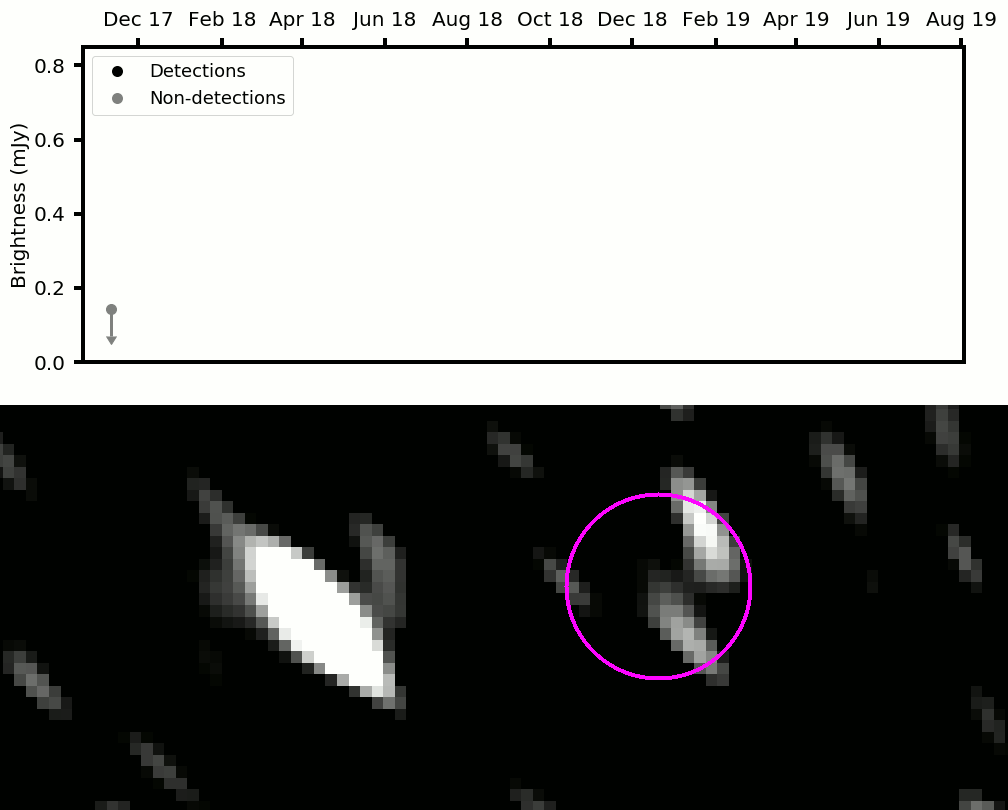

The light curve of the newly discovered flaring source MKT J170456.2-482100, and the images corresponding to the light curve (the position of MKT J170456.2-482100 is circled in pink).

MeerTRAP detects FRB121102

10.09.2019 - The MeerTRAP team detects 12 bursts from FRB121102

The detection plot of one of the bursts from the repeating fast radio burst FRB121102, as seen by our MeerTRAP team after the real time detection of the burst. The top plot shows the frequency time plot, and the bottom plot shows the dedispersed burst profile.

We’re excited to announce that we have been involved in the detection of bursts from the first repeating fast radio burst, FRB 121102!

Recently, it was reported by various facilities that FRB 121102 was active, so we took the opportunity (as part of a MeerKAT DDT proposal) to observe the source early on the morning of the 10th of September. We used the MeerTRAP real-time pulse detection pipeline and backend, with the Max Planck Institute for Radio Astronomy beam former, to search for bursts in real-time for three hours.

Check out the ATel announcing our detection of 12 bursts from FRB 121102 in real-time in the three hours of observing.

Duncan working hard with the MeerTRAP team to spot bursts from the repeating fast radio burst, FRB121102.


The Jodrell Bank Centre for Astrophysics

The University of Manchester

This project has received funding from the European Research Council (ERC) under the European Union's Horizon 2020 research and innovation programme (grant agreement number 694745).
